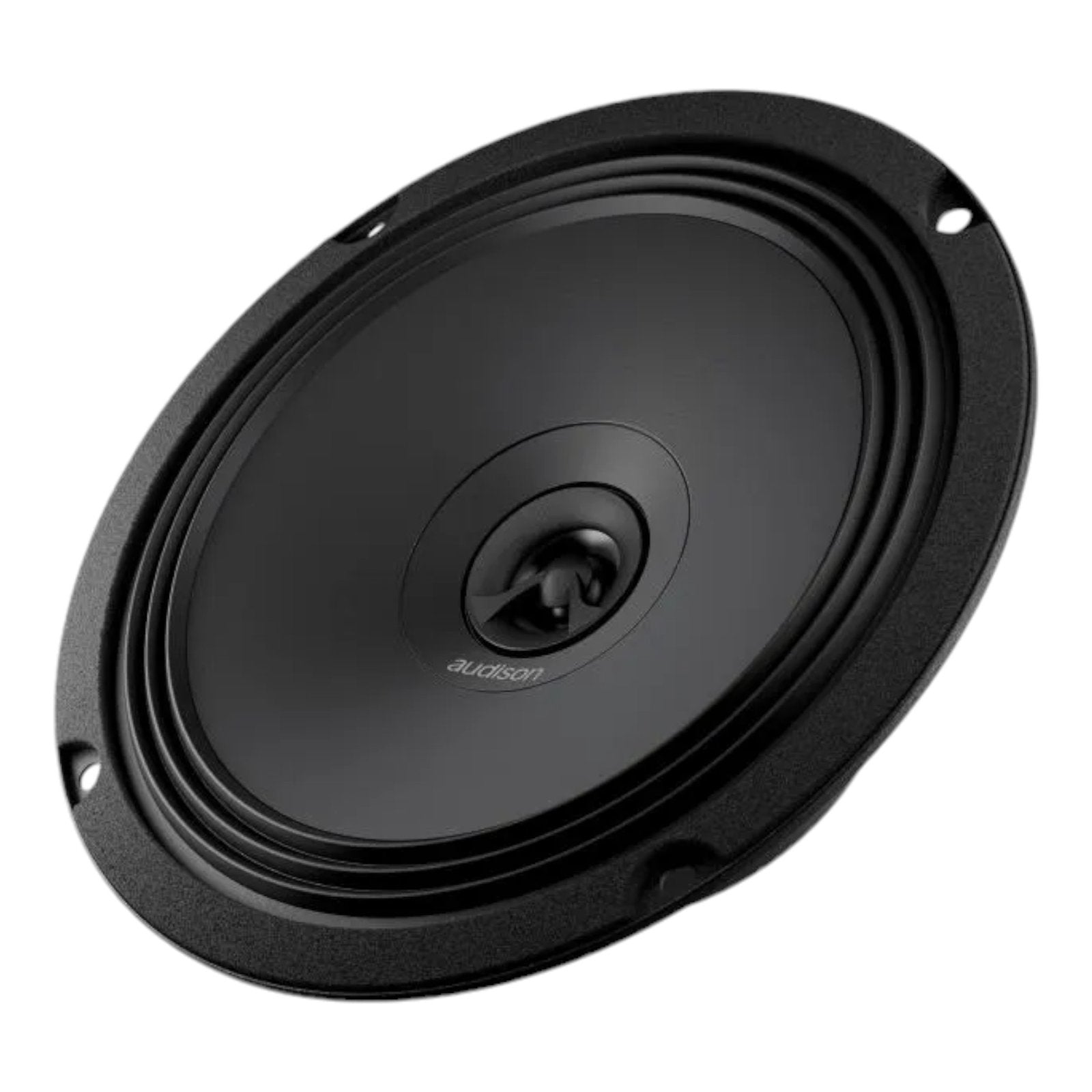

APX 6.5 Coaxial Speakers - 210W Peak

APX 6.5 coaxial speakers are designed to deliver a superior sound experience in automotive audio systems. Equipped with a concentric coaxial tweeter, they ensure a single sound emission point, providing a consistent response and acoustic scene reproduction similar to separate woofer and tweeter systems. The exclusive cone design, with a shallow Triple Wave profile, allows for maximum linear excursion, ensuring sound quality and accuracy across a wide range of frequencies.

Technical Specifications:

•
  Dimensions:



  • Woofer: 165mm


  • Tweeter: 24mm






•
  Power:



  • Peak Power: 210 W


  • Continuous Power: 70 W






•
  Impedance:



  • Woofer: 4 Ohm






•
  Frequency Response:



  • Woofer: 60Hz to 23kHz






•
  Sensitivity:



  • Tweeter: 94 dB






•
  Acoustic Parameters:



  • Re (Electrical Impedance): 3.1 Ohm


  • Fs (Resonance Frequency): 80 Hz


  • LE (Inductance): 0.1 mH


  • Vas (Equivalent Volume): 8.1 l


  • Mms (Mobile Mass): 11.5 g


  • Cms (Suspension Compliance): 0.33 mm/N


  • Bl (Force Factor): 4.6 T*m


  • Qts (Total Quality Factor): 0.73


  • Qes (Electrical Quality Factor): 0.84


  • Qms (Mechanical Quality Factor): 5.4






•
  Woofer Construction:



  • Voice Coil Diameter: 32mm


  • Magnet: 85 x 40 x 15 mm






•
  Tweet:



  • Voice Coil Diameter: 15mm






•
  Maximum Excursion:



  • Xmax: 2mm






•
  Weight:



  • 0.87 kg





Additional Features:

• Lightweight and durable design


• Triple Wave cone profile for linear excursion and maximum sound quality
