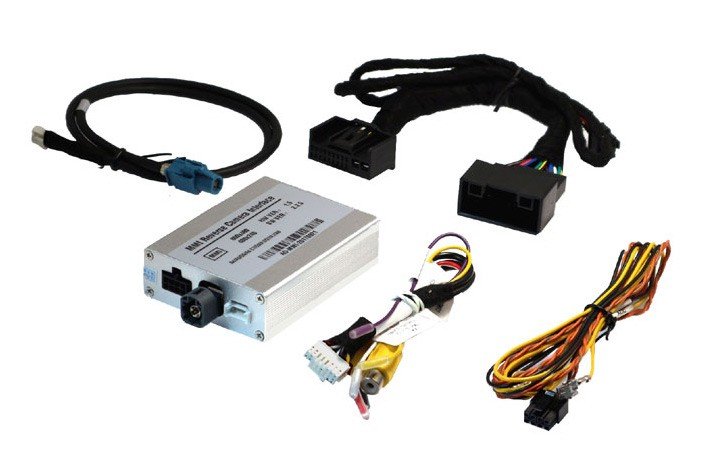

Front Rear Camera Interface Audi A1 A4 A5 A6 A7 A8 Q5 Q7 MMI 3G & RMC

Car video interfaces provide inputs for external audio and video sources such as navigation, front and rear view cameras, screen mirroring adapter and digital TV tuner with display on the factory display. With a Plug & Play installation solution, all original functions are retained.

Product Features
Plug & Play Cable via LVDS
Front camera input
Rear view camera input with PAS (dynamic guidance lines)
Automatic rear camera switching

Navigation system
Audi MMI 3G High
Audi MMI 3G Low
Audi MMI 3G 3G Plus
Audi RMC

How to identify the navigation system?
Press the CAR button, then press the SETUP or MENU button, then press the SETTINGS button and scroll down to VERSION INFORMATION and you will see what software version you have in your car.

HNav_EU... means it has MMI 3G HIGH
BNav_EU... means it has MMI 3G LOW
HN+R_EU... means it has MMI 3G PLUS
RMC_EU.... means it has MMI RMC
MHI1_EU... means it has MMI MIB1
MHI2_EU... means it has MMI MIB2
MSTD_EU... means it has MMI MSTD

Vehicle compatibility
Audi A1 (8X) 09/2007 →
Audi A4 (8K) 05/2009 → 08/2015
Audi A5 (8T) 11/2008 → 06/2016
Audi A6 (4F) 08/2008 → 03/2011
Audi A6 (4G) 04/2011 → 09/2014
Audi A7 (4G) 07/2010 → 05/2014
Audi A8 (4E) 09/2008 → 03/2010
Audi A8 (4H) 03/2010 → 2017
Audi Q3 (8U) 2012 → 2018
Audi Q5 (8R) 11/2008 → 2017
Audi Q7 (4L) 05/2009 → 03/2015
