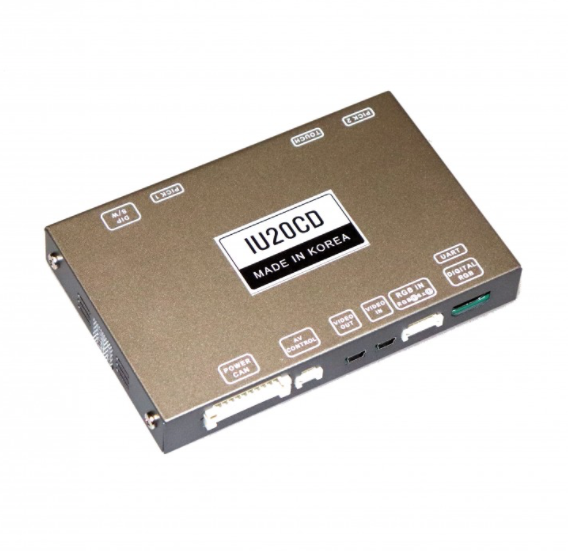

Rear Camera Video Interface Cadillac ATS CTS Escalade SRX XTS CUE IO5 IO6

Car video interfaces provide inputs for external audio and video sources such as navigation, front and rear view cameras, screen mirroring adapter and digital TV tuner with display on the factory display. With a Plug & Play installation solution, all original functions are retained.

Product Features
Plug & Play Cable via LVDS
HDMI NAV input for CarPlay, Android Auto & MirrorLink module (optional)
Front camera input
Rear camera input
Automatic rear camera switching

Navigation system
Cadillac CUE IO5/IO6 (8" display)
NAVI 900 IntelliLink 8"
Mylink IO5/IO6 (8" display)

Vehicle compatibility
Cadillac ATS 2014 → 2015
Cadillac CTS Coupe 2014 → 2016
Cadillac CTS / CTS-V 2014 → 2015
Cadillac Escalade 2015 → 2015
Cadillac SRX 2013 → 2015
Cadillac XTS 2013 → 2015
Opel Astra K 2015 →
Opel Insignia 2014 →
Opel Mokka X 2016 →
Chevrolet Corvette 2014 → 2018


Important note
Not compatible with vehicles equipped with 360º cameras
A factory-fitted AUX audio input is required. On some navigators it is already activated. Otherwise, the head unit must be coded for AUX audio via the diagnostic computer.
